Overview

 Print Brochure

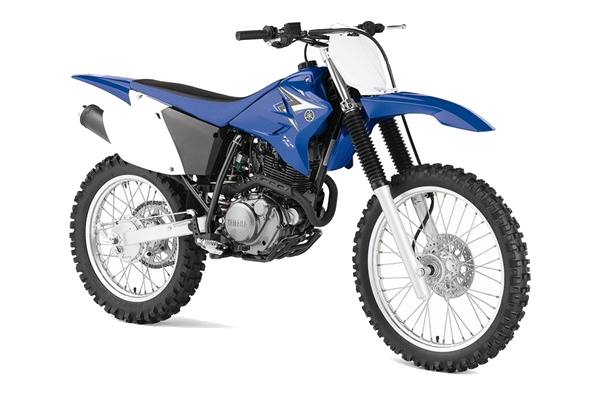

Predictable power and reliability make the TT-R230 great for beginner and intermediate riders.


Ride More, Worry Less: TT-R 230E has a push button electric starter, powerful four-stroke engine, competition-style flat seat/tank junction, long travel suspension, and 11.6 inches of ground clearance. TT-R 230E is a serious trail bike that is also accessible to a wide range of riders.

    Key Features
    • YZ-inspired handling and looks, and a stout 223cc air-cooled, SOHC four-stroke producing predictable, broadband power, make the TT-R230 a great choice for beginner and intermediate riders.
    • Competition-style flat seat/tank junction for great rider mobility.
    • Electric start makes getting started a complete pushbutton exercise.
    • A low seat height on top of a long-travel suspension and 11.6 inches of ground clearance make this a serious trailbike that’s also accessible to a wide range of riders.
    • Steel, diamond-type-design frame means great handling and strength.
    Engine Features
    • Super-reliable, electric start, 223cc air-cooled, SOHC four-stroke puts out smooth, widespread power perfectly suited for all kinds of trails and riders.
    • Smooth-shifting, six-speed transmission with heavy-duty clutch geared for maximum versatility and usable power delivery.
    • CDI magneto ignition system is ultra-reliable and nearly maintenance-free.
    • YZ-type air filter for easy maintenance and maximum airflow.
    • Lightweight exhaust with muffler and quiet, USFS-approved spark arrestor.
    • Automatic cam chain tensioner means minimal maintenance and longer engine life.
    Chassis/Suspension Features
    • Steel frame with compact wheelbase and low seat height combines accessibility to new or smaller riders with superb maneuverability and super-responsive handling.
    • Linkage-mounted adjustable rear shock serves up 8.7 inches of smooth, progressive rear wheel travel for great bump absorption and handling.
    • 36mm front fork with 9.5 inches of wheel travel provides plush, confidence-inspiring control over rough terrain.
    • 11.6 inches of ground clearance should be enough to deal with almost any trail.
    • Aluminum box-section swingarm features snail-type chain adjusters for quick and easy chain adjustments.
    • Front 220mm disc and 130mm rear drum brakes for powerful, confident stops.
    • Full-size 21-inch front and 18-inch rear aluminum wheels keep unsprung weight down, while knobby tires provide motocross-spec grip.
    Additional Features
    • Long gripper seat is low, comfortable, and allows easy rider movement.
    • Team Yamaha-inspired colors, graphics and front and side number plates create distinctive styling.
    • Sleek fuel tank with 2.1-gallon capacity for good range and excellent freedom of movement.
    • Large, folding, cleated footpegs provide excellent footing, even in wet or muddy conditions.
    • Durable fork boots provide excellent fork seal and stanchion tube protection.
    Engine Specifications
    • Type: 223cc air-cooled SOHC 4-stroke, 2 valves
    • Bore x Stroke: 70.0mm x 58.0mm
    • Compression Ratio: 9.5:1
    • Fuel Delivery: Y26P
    • Ignition: DC-CDI
    • Transmission: Constant-mesh 6-speed; multiplate wet clutch
    • Final Drive: Chain
    Chassis Specifications
    • Suspension/Front: Telescopic fork; 9.5-in. travel
    • Suspension/Rear: Single shock; 8.7-in. travel
    • Brakes/Front: 220mm single disc
    • Brakes/Rear: 130mm drum
    • Tires/Front: 80/100-21 NHS
    • Tires/Rear: 100/100-18 NHS
    Dimensions
    • Length: 81.3 in.
    • Width: 31.5 in.
    • Height: 46.5 in.
    • Seat Height: 34.2 in.
    • Wheelbase: 54.5 in.
    • Ground Clearance: 11.6 in.
    • Fuel Capacity: 2.1 gal
    • Wet Weight: 251 lbs.
    Other Specifications
    • Warranty: 90 Day (Limited Factory Warranty)
    Colors
    • Color: Team Yamaha Blue/White

    Specifications

    Engine
    Engine Type 223cc air-cooled SOHC 4-stroke, 2 valves
    Displacement 223cc
    Bore and Stroke 70.0mm x 58.0mm
    Cooling Air-Cooled
    Compression Ratio 9.5:1
    Fuel System Y26P
    Ignition DC-CDI
    Chassis
    Front Suspension Telescopic fork; 9.5-in. travel
    Front Brakes 220mm single disc
    Front Tire 80/100-21 NHS
    Rear Suspension Single shock; 8.7-in. travel
    Rear Brakes 130mm drum
    Rear Tire 100/100-18 NHS
    Dimensions
    Fuel Capacity 2.1 gal
    Wheelbase 54.5 in.
    Ground Clearance 11.6 in.
    Seat Height 34.2 in.
    Transmission
    Transmission Constant-mesh 6-speed; multiplate wet clutch
    Final Drive Chain
    General
    Colors Team Yamaha Blue/White
    Warranty 90 Day (Limited Factory Warranty)

    Compare Models

    		 Print








    Year 2011
    Manufacturer Yamaha
    Model TT-R230
    Style Off-Road
    MSRP* $3,790.00
    Chassis
    Front Suspension Telescopic fork; 9.5-in. travel
    Front Brakes 220mm single disc
    Front Tire 80/100-21 NHS
    Rear Suspension Single shock; 8.7-in. travel
    Rear Brakes 130mm drum
    Rear Tire 100/100-18 NHS
    Dimensions
    Dry Weight
    Fuel Capacity 2.1 gal
    Wheelbase 54.5 in.
    Ground Clearance 11.6 in.
    Seat Height 34.2 in.
    Trail
    Rake
    Engine
    Engine Type 223cc air-cooled SOHC 4-stroke, 2 valves
    Displacement 223cc
    Bore and Stroke 70.0mm x 58.0mm
    Cooling Air-Cooled
    Compression Ratio 9.5:1
    Fuel System Y26P
    Ignition DC-CDI
    General
    Colors Team Yamaha Blue/White
    Warranty 90 Day (Limited Factory Warranty)
    Transmission
    Transmission Constant-mesh 6-speed; multiplate wet clutch
    Final Drive Chain
