New » Yamaha » FX Nytro XTX
Model Quick Search

$11,049.00

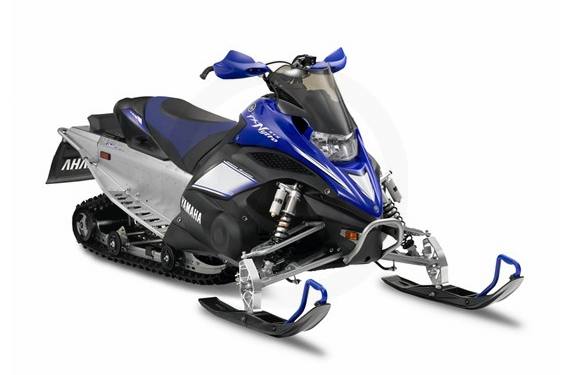

2009 Yamaha FX Nytro XTX
Request a Quote Financing Calculator Request a Brochure Financing Form
Request a Quote Financing Calculator Request a Brochure Financing Form
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview

 Print Brochure

    COLOR
    • Yamaha Blue/White
    • White/Silver
    ENGINE
    • Type / Displacement / cc: Four-stroke, 1049cc
    • Cylinders: Three
    • Horsepower Class: 130 HP
    • Cooling: Liquid
    • Bore & Stroke / mm: 82.0 X 66.2
    • Intake Design: 2 Valves
    • Ignition: Digital T.C.I. w/throttle position sensor
    • Carburetion: 41mm Mikuni®, fuel injection
    • Exhaust: 2 valves, rear exhaust
    • Clutch / Transmission: YVXC, variable ratio
    • Disc. Brake Type: 4-piston hydraulic w/ lightweight ventilated disc
    CHASSIS
    • Front Suspension: Next generation FX-style independent, double wishbone
    • Front Shocks: 40mm GYTR dual-clicker HPG
    • Front Travel / in.: 8.5 in
    • Ski Type: Lightweight plastic, saddleless design
    • Carbide Ski Runners: Standard
    • Stabilizer Bar: Standard, linear ratio
    • Rear Suspension: Dual Shock CK 144
    • Rear Shocks: C40 R12.5 SOQI aluminum HPG / C40 R12.5 SOQI aluminum w/ piggyback compression clicker
    • Rear Travel / in.: 14.5 in
    DIMENSIONS
    • Overall Length / in.: 119.8 in
    • Overall Width / in.: 46.4 in
    • Overall Height / in.: 45.6 in
    • Track/Width x Length x Height / in.: 15 in X 144 in X 1.25 in Camoplast Rip Saw™
    • Estimated Dry Weight: 542 lb
    • Ski Stance (ctr. to ctr.) in.: 41.3"
    • Fuel Capacity / Gal.: 7.4 gal
    • Fuel Type: Regular Unleaded
    • Oil Capacity / Qts.: 3, Dry Sump
    • Engine Oil Type: Yamalube 4, 0w-30, Cold Weather Formula
    ADDITIONAL FEATURES
    • Electric Start: Standard
    • Reverse: Standard
    • Hand & Thumb Warmers: To-the-end, 9-position adjustable
    • Windshield Height: Low
    • Mirrors: Optional
    • Seating Capacity: One
    • Tunnel Protectors: Standard
    • Headlight Watts, Type: 60/55W Halogen x 2
    • High Beam Indicator: Standard
    • Oil & Temp Light: Standard
    • Fuel Gauge Type: Electric (LCD), Low Fuel Warning Light
    • Speedometer: Standard (LCD, Digital)
    • Odometer: Standard (Large LCD Display)
    • Tripmeter: Standard, Backlit (LCD)
    • Tachometer: Standard, Backlit (LCD)
    • Color: Team Yamaha Blue/White; White/Silver
    • Warranty: 1 Year (Limited Factory Warranty)
    PERFORMANCE
    • Genesis® 130FI 4-stroke engine
    • Advanced fuel injection
    • Anti-Engine Braking System
    • Lightweight rear-exiting exhaust
    • Forced air radiator ducting
    • 15x144x1.25-inch Camoplast®
    HANDLING
    • FX™ chassis with sport rider-forward position
    • Over-the-engine steering
    • Tall, hooked bars
    • New front suspension geometry
    • Composite upper skeleton
    • Lightweight tunnel
    COMFORT
    • Dual Shock™ CK 144 rear suspension
    • 40mm compression-adjusting clicker shock
    • GYTR™ dual-clicker front shocks
    • Sculpted narrow seat
    • Digital gauge
    • Quick-release, single-piece hood/console shroud

    Specifications

    Engine
    Engine Type 130 HP Class, Four-stroke
    Displacement 1049 cc, 2 Valves
    Bore x Stroke 82.0 x 66.2 mm
    Cylinders Three
    Engine Cooling Liquid
    Carburetion 41 mm Mikuni®, fuel injection
    Ignition Digital T.C.I. w/throttle position sensor
    Exhaust 2 valves, rear exhaust
    Drivetrain
    Brake Type 4-piston hydraulic w/ lightweight ventilated disc
    Drive Clutch YVXC
    Suspension
    Front Suspension Next generation FX-style independent, double wishbone
    Front Travel 8.5 in.
    Rear Suspension Dual Shock CK 144
    Rear Travel 14.5 in.
    Ski Type Lightweight plastic, saddleless design
    Ski Stance 41.3 in.
    Track Type Camoplast Rip Saw™
    Track Dimensions 15" x 144" x 1.25"
    General
    Speedometer Standard (LCD, Digital)
    Tachometer Standard, Backlit (LCD)
    Odometer Standard (Large LCD Display)
    Headlight 60/55W Halogen x 2
    Fuel Capacity 7.4 gal.
    Dry Weight 542 lbs.
    Windshield Low
    Color Yamaha Blue/White, White/Silver
    Warranty 1 Year (Limited Factory Warranty)
    Options
    Electric Start Standard
    Hand & Thumb Warmers To-the-end, 9-position adjustable
    Reverse Standard
    Mirrors Optional

    Compare Models

    		 Print








    Year 2009
    Manufacturer Yamaha
    Model FX Nytro XTX
    Style Hybrid
    MSRP* $11,049.00
    Drivetrain
    Brake Type 4-piston hydraulic w/ lightweight ventilated disc
    Drive Clutch YVXC
    Driven Clutch
    Engine
    Engine Type 130 HP Class, Four-stroke
    Displacement 1049 cc, 2 Valves
    Bore x Stroke 82.0 x 66.2 mm
    Cylinders Three
    Engine Cooling Liquid
    Carburetion 41 mm Mikuni®, fuel injection
    Ignition Digital T.C.I. w/throttle position sensor
    Exhaust 2 valves, rear exhaust
    Alternator
    General
    Speedometer Standard (LCD, Digital)
    Tachometer Standard, Backlit (LCD)
    Odometer Standard (Large LCD Display)
    Headlight 60/55W Halogen x 2
    Fuel Capacity 7.4 gal.
    Dry Weight 542 lbs.
    Windshield Low
    Color Yamaha Blue/White, White/Silver
    Warranty 1 Year (Limited Factory Warranty)
    Options
    Electric Start Standard
    Hand & Thumb Warmers To-the-end, 9-position adjustable
    Reverse Standard
    Mirrors Optional
    Suspension
    Front Suspension Next generation FX-style independent, double wishbone
    Front Travel 8.5 in.
    Rear Suspension Dual Shock CK 144
    Rear Travel 14.5 in.
    Ski Type Lightweight plastic, saddleless design
    Ski Stance 41.3 in.
    Track Type Camoplast Rip Saw™
    Track Dimensions 15" x 144" x 1.25"
